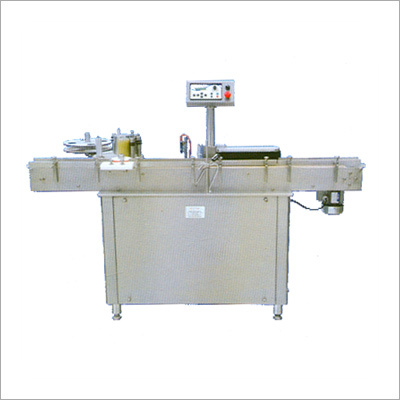

Automatic Self Adhesive Vertical Labelling Machine Machine Specifications
Model No.
|
ASAL-120
|
ASAL-250
|
| Production Rate |
Up to 120 Vials/Min. |
Up to 240 Vials/Min. |
Electrical Supply
|
2 HP
|
2 HP
|
Power Requirement
|
230 Volts, Single Phase, 50 Hz
|
230 Volts, Single Phase, 50 Hz.
|
Height of Conveyor
|
Adjustable from 800 to 850 mm
|
Adjustable from 800 to 850 mm
|
| Dimensions |
1830 mm (L) x 800 mm (W) x 1300 mm (H)
|
1830 mm (L) x 800 mm (W) x 1300 mm (H)
|
Net Weight
|
350 Kgs. (Approx)
|
350 Kgs. (Approx)
|
Gross weight
|
575 Kgs. (Approx)
|
575 Kgs. (Approx)
|
Label Height
|
10 mm to 160 mm
|
10 mm to 160 mm
|
| Label Length |
12 mm to unlimited
|
12 to unlimited
|
| Gap between Two Labels |
Min. 5 mm
|
Min. 5 mm
|
| Label Roll Dia. |
300 mm Max.
|
300 mm Max.
|
| Label Core Dia. |
75 mm to 76 mm
|
75 mm to 76 mm
|
Con
|
20 mm to 90 mm
|
20 mm to 90 mm
|
Note
- Right of technical improvements & modifications reserved.
- All illustrations & dimensions are shown for information only.
|
