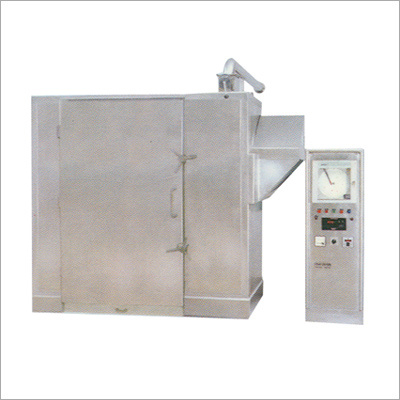

Pharmaceutical Tray Dryer

Pharmaceutical Tray Dryer
Pharmaceutical Tray Dryer
Product Code : 25
Brand Name : PROJECT CONSULTANCY SERVICES
Product Description

Pharmaceutical Tray Dryer

Our main agenda is to export and supply superior quality Pharmaceutical Tray Dryer that is widely cherished by our clients. For manufacturing this dryer, our vendor's team of industrial experts utilizes premium quality components and advanced methodology in tune with set market norms. Provided dryer is used to dry powder in chemical and pharmaceutical industry. Our valuable clients can purchase this Pharmaceutical Tray Dryer from at economically fair prices within the stipulated time frame.

Features:

  • Perfect finish
  • High operational fluency
  • User friendly design
  • Low energy consumption



Tray Dryer

Standard Features

  • Its state-of-the-art internal design incorporating
  • Rounded corner and angles
  • Easy accessibility of internals for Hygienic cleaning.
  • Even thermal distribution internally all over the chamber with a variations of +- 2oC
Capacity Offered
  • 6 Trays - Single Door
  • 12 Trays - Single Door
  • 24 Trays - Single/Double Door
  • 48 Trays - Single/Double Door
  • 96 Trays - Single/Double Door
Technical Specifications

Models Loading capacity
Bo-12
12 Trays
W D H
Bo-24
24 Trays
W D H
B0-48
48 Trays
W D H
Bo-96
96 Trays
W D H
Bo-192
192 Trays
W D H
External Dimension in mm
1370 x 530 x 940
1370 x 940 x 940 1980 x 1020 x 1880
3320 x 1020 x 1880
3320 x 1900 x 1880
Internal Dimension in mm
840 x 430 x 840
840 x 860 x 840
1020 x 930 x 1830
1960 x 930 x 1830
1960 x 1750 x 1830
No. of Doors
One
One
One
Two
Two
No. of Blowers
One
Two
One
Two
Four
No. of motors / H.P.
3 Phase 415 volts.
1/0.5 H.P.
3 phase 415V.
1/0.5 H.P.
3 phase 415V.
1/1 H.P.
3 phase 415V.
2/1 H.P.
3 phase 415V.
4/1 H.P.
3 phase 415V.
Electrical Heating Load for 100o C/200o C/300o
C
3kw/6kw/9kw
6kw/9kw/12kw 9kw/15kw/18kw 15kw/12kw/27kw 36kw/42kw/48kw
Steam Heater
No. of Coils
2
2
2
2
2
Steam Pressure
3.3 kg/cm2
3.3 kg/cm2 3.3 kg/cm2 3.3 kg/cm2 3.3 kg/cm2
Steam Consumption
25 LBS/hr
45 LBS/hr 60 LBS/hr 80 LBS/hr 120 LBS/hr
Insulation in mm 100oo C/300o C C/200 50 / 75 / 75
50 / 75 / 75 50 / 75 / 75 50 / 75 / 75 50 / 75 / 75
No. of Trolleys
Rack System
Rack System One
Two
Four
Tray Size
812 x 406 x 31
812 x 406 x 31 812 x 406 x 31 812 x 406 x 31 812 x 406 x 31
Trolley Dimension
Fixed Racks
Fixed Racks 840 x 960 x 1780
840 x 960 x 1780 840 x 960 x 1780
